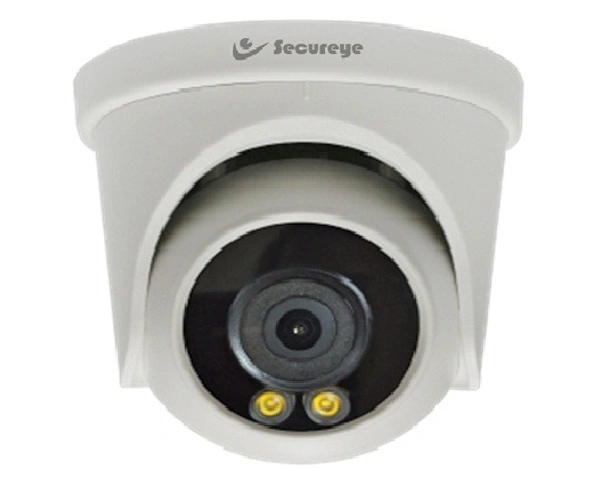

AHD Dome Camera with Flood Light LED – S-A-D2

• Description : AHD DOME Camera with Flood Light LED
• Model No : S-A-D2

Key Features:

• 2MP full time color camera
• 1/2.9″ CMOS Sensor
• 4 in 1 camera, AHD/TVI/CVI/CVBS mode
• 3.6mm Fixed Lens
• IP66
• Housing Material: Plastic cover + Metal ball
• Up the Coaxial Control
• Support 3D DNR
• Technical Specifications

Camera

• Image Sensor: 1/2.9″ CMOS Sensor
• Signal System: PAL/NTSC
• Effective Pixels: 1920(H) x 1080(V)
• Electronic Shutter: AUTO/ 1/50(1/60)-1/50,000sec
• Synchronization: Internal
• Min. IIIumination: Color: 0.1Lux, 0 Lux with white light
• Video Frame Rate: PAL/NTSC: 25/30fps
• Video Output: AHD / TVI / CVI / CVBS

Camera Feature

• S/N Ratio: >50dB
• Noise Reduction: 3D DNR
• Day&Night: Color
• White Balance: Auto
• AGC: Auto
• IR LED: 2pcs warm light
• IR Range: Up to 20m

Lens

• Focal Length: 3.6mm fixed lens
• Angle of View: H: 78°
• Lens Type: Fixed Iris
• Mount Type: M12

General

• IP Rating: IP66
• Housing Material: Plastic cover + Metal ball
• Power Supply: DC12V(+/-10%)
• Power Consumption: ＜5W
• Working Temp./ Humidity: -200C~+500C RH95% MAX
